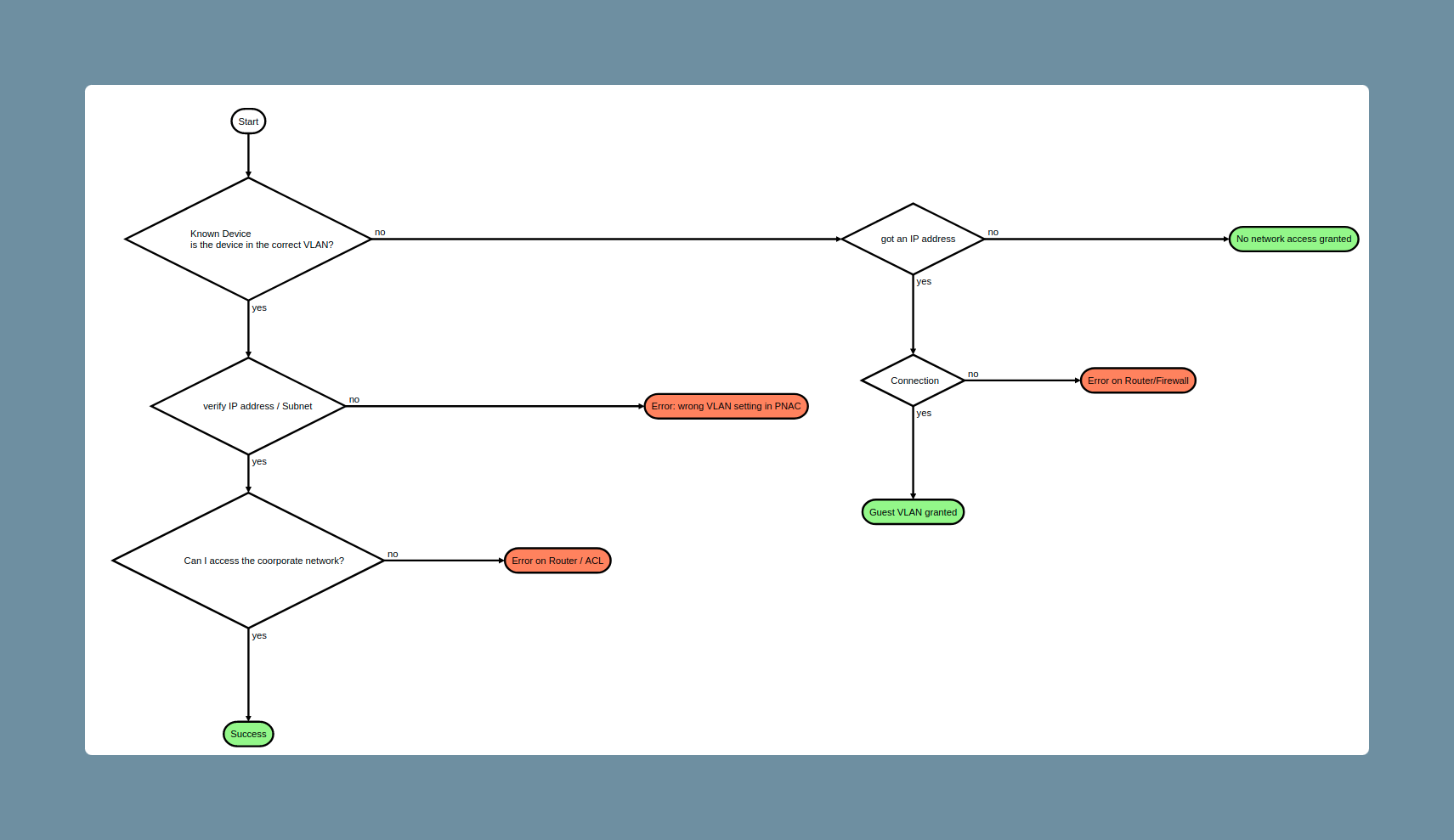

Connection to switch

notion image

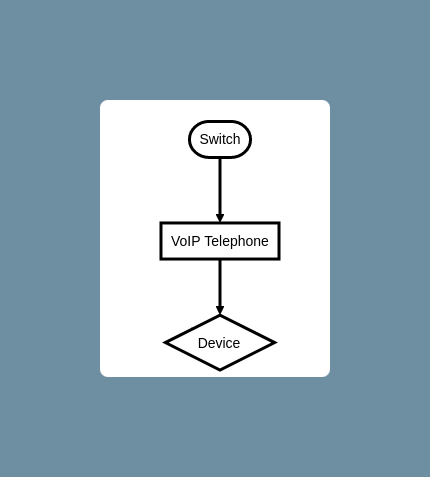

Connection with VoIP

notion image
ㅤ
VoIP Telephone is working
device is working
comments
VoIP Telephone known
[o]
ㅤ
ㅤ
VoIP Telephone unknown
[x]
ㅤ
ㅤ
Device known
[o]
[o]
ㅤ
Device unknown
[o]
[x]
The functionality of VoIP may also be affected if the device is unrecognized, depending on the switch.

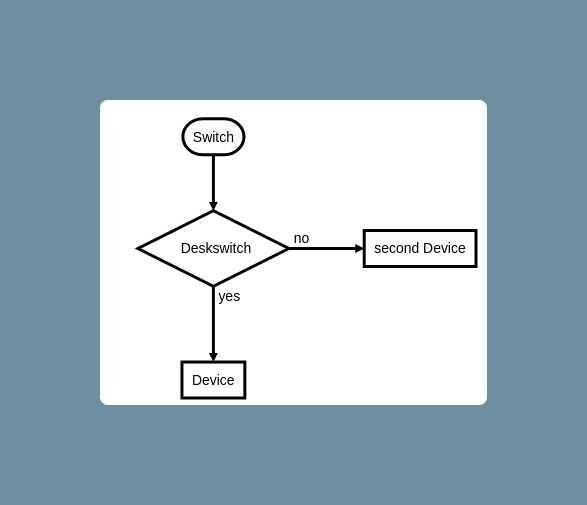

Connection with deskswitch

notion image
ㅤ
device 1 is working
device 2 is working
comments
device 1 known
[o]
ㅤ
ㅤ
device 1 unknown
[x]
ㅤ
ㅤ
device 2 known
[o]
[o]
ㅤ
device 2 unknown
[o]
[x]
The functionality of either both or only the unknown one may not work, depending on the switch.
